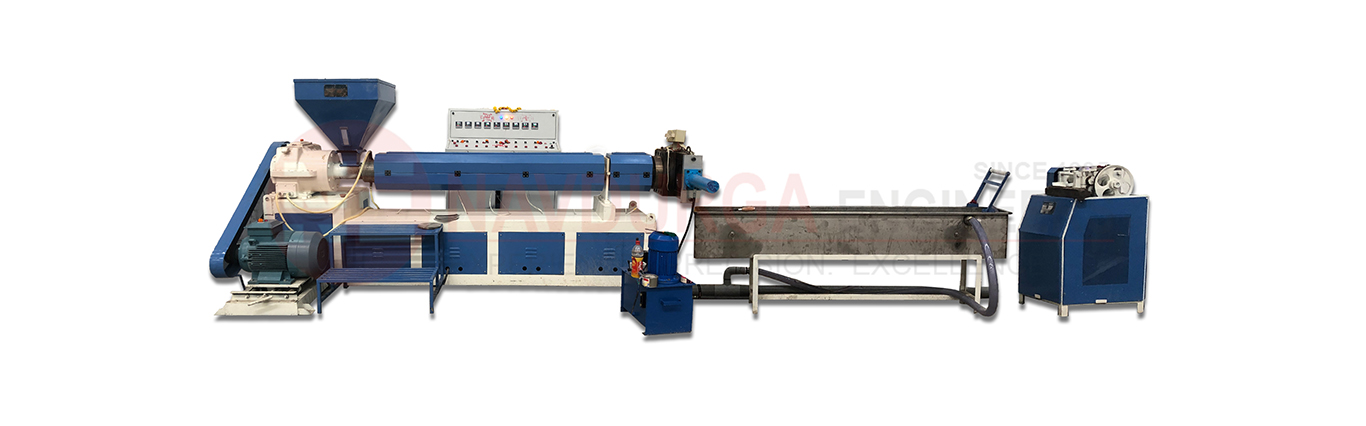

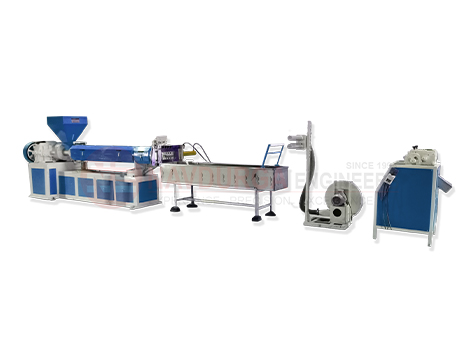

Plastic Granules Making Machine (for Recycling and Pelletizing)
Plastic Granules Making Machine which works on a principal of plastic extrusion process, is a normally high volume manufacturing process where a polymer material, enriched with the desired additives, is melted and formed in a continuous process. Where output can get form of granules, tubes, sheets, lumps and etc.
Plastic Granules Making Machine Manufacturers
Navdurga Engineers is a rapidly growing Plastic Granules Making Machine Manufacturers, providing practical and efficient machinery for plastic recycling and manufacturing of plastic granules. The machines are capable of processing suitable plastic waste and making use of it in the form of plastic granules with ease and consistency.
Plastic Granules Making Machine serves a crucial part in converting recycled plastic materials into useful raw materials to undergo further plastic processing. Plastic Granules Making Machines provided by Navdurga Engineers have been developed in such a way that the machines possess a strong extrusion system, effective heating system, filtration arrangements, cooling, and pelletizing systems.
Plastic Granules Making Machines are capable of being configured for recyclable thermoplastic materials including HDPE, LDPE, LLDPE, PP, ABS, HIPS, and other suitable plastics. These different configurations of machines are capable of meeting the production capacity and application of processing.
Navdurga Engineers specializes in strong construction, ease of operation, good temperature control, and good machine designing. These include hydraulically operated screen change, cooling system, pelletizing equipment, automation, etc., which could make the entire procedure more efficient.
Selecting experienced Plastic Granules Making Machine Manufacturers will assist businesses in selecting appropriate machines based on the type of plastic, required output, filtration, and production.
Navdurga Engineers offers Plastic Granules Making Machines for businesses that want to establish plastic recycling operations.

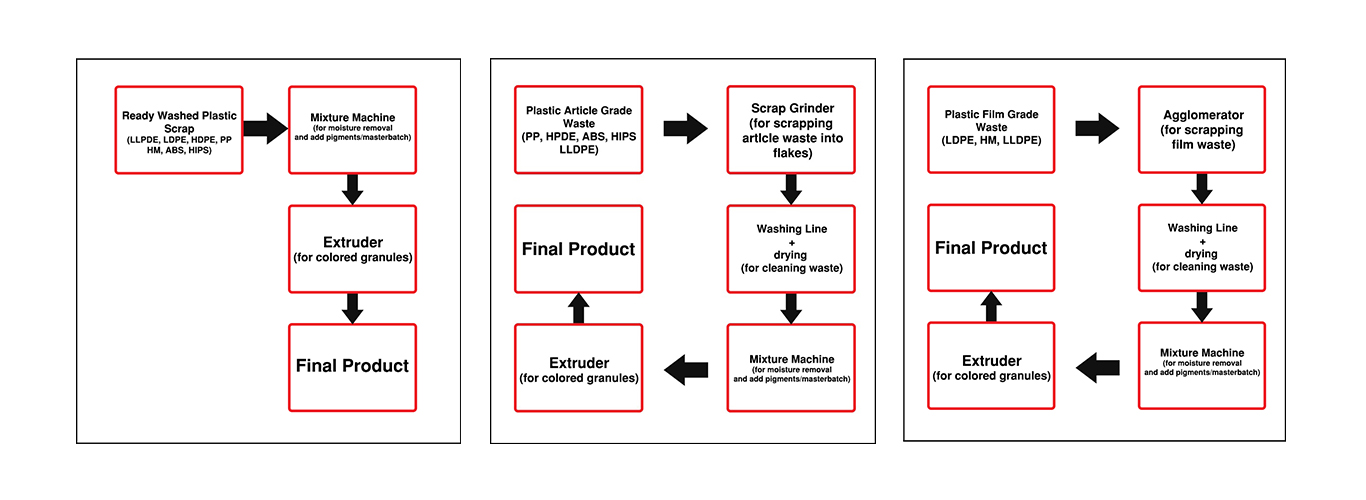

How It Works
In the entire process, A plastic material, normally in flakes form is placed into hopper of extruder, usually made from fabricated from mild steel or fabricated from stainless steel as per material requirement. There is a hopper magnet fitted inside the hopper to stop metallic particles from entering inside the barrel.
The raw material in the form of flakes, is gravity fed into the hopper and through the feed throat, drop on the rotating screw. Barrel has several amount of heaters fitted on the outer diameter. Which heats up the barrel to get extrusion process job done. Screw is connected with helical gearbox and AC motor which helps to rotate the screw.
Raw material in flakes form starts to move forward along the rotating screw and enters the heating spot of barrel. Where it starts to melt. Molten plastic reaches the end of the barrel where hydraulic screen changer is fitted which filters the molten plastic and converts it into plastic strands. Plastic strands moves forward and drops inside the stainless steel water tank and its temperature starts to cool down. Plastic strands then enters the pelletizer machine which turn it into pellets.
Production range
Production Range of 50 kg/hr to 300 kg/hr.
Model Range
Various models available which are classified according their production rate. 65 mm to 125 mm screw size extruder models available.
Salient Features
- Screw & barrel are made of EN41-B mild steel, nitride and honing finished for quality production & longer durable life.
- Optional : Tungsten carbide coated screw & barrel available, for high production machines to provide a longer durable life.
- Screw design for reprocessing & coloring application of LLDPE, HDPE, LDPE, PP, HM, PVC, ABS & HIPS.
- Screws are designed for specific material to get better quality for specific material while producing single category material or universal design for every material.
- Barrel has been divided into heating zones for accurate temperature control.
- Digital pyrocontrol panel for faster heating & energy saving.
- Thermocouples are provided for each heating zones for temperature control through digital temperature controllers.
- Movable motor attachment provided for main AC motor & pelletizing motor.
- Extruder unit is consisting of heavy & sturdy MS channel’s fabricated frame and covered with CRC sheet.
- High efficient hopper magnet provided for detect and restrict the ferrous material from the polymer.
- Screw is rotated by suitable AC motor with heavy duty helical gear box. AC motor and helical gear box are from reputed brands.
- Hydraulic screen changer provided to filter molten plastic in case it contains dust or particles. Die attached with hydraulic screen changer which converts molten plastic into plastic strands after filtration. Comes along power pack.
- Cooling tank is fabricated from stainless steel sheet, which mounted on height adjustable fabricated stand. Where guide rollers are provided to convey the strands forward towards pelletizing unit.
- Pelletizing unit fabricated from heavy angles, where peletizer is mounted which has consisting sets of carbide tips moving blades. Unit is driven by AC motor.
| SINGLE STAGE PLASTIC GRANULES MAKING MACHINE(VENTED) | ||||||
|---|---|---|---|---|---|---|
| MODEL | UNIT | NE/75/EXT | NE/90/EXT | NE/100/EXT | NE/110/EXT | NE/125/EXT |
| ARTICLE WASTE (PP, HDPE, LLDP etc. | Kg/hr | 70-80 | 100-120 | 130-150 | 180-200 | 240-250 |
| Film Waste (LDPE,HM etc.) | Kg/hr | 70 | 90-100 | 110-130 | 150-180 | 200-250 |
| HIPS/ABS | Kg/hr | 60 | 100 | 150 | 180 | 230 |
| Connecting Load | HP | 60 | 71 | 85 | 106 | 121 |
| Running Load | HP | 24 | 35 | 49 | 73 | 85 |
| Space Requirement (LXBXH) | Feet | 24x3x5 | 27x5x6 | 27x5x6 | 28x5x6.5 | 30x6x6.5 |
| Raw material must be washed and sorted according plastic category to get mentioned production rate | ||||||
| SINGLE STAGE PLASTIC GRANULES MAKING MACHINE (NON VENTED) | ||||||
|---|---|---|---|---|---|---|
| MODEL | UNIT | NE/75/EXT | NE/90/EXT | NE/100/EXT | NE/110/EXT | NE/125/EXT |
| ARTICLE WASTE (PP, HDPE, LLDP etc. | Kg/hr | 60-70 | 100-120 | 130-150 | 180-200 | 240-250 |
| Film Waste (LDPE,HM etc.) | Kg/hr | 70 | 90-100 | 110-130 | 150-180 | 200-250 |
| HIPS/ABS | Kg/hr | – | – | – | – | – |
| Connecting Load | HP | 49 | 60 | 66 | 96 | 106 |
| Running Load | HP | 19 | 30 | 36 | 60 | 70 |
| Space Requirement (LXBXH) | Feet | 24x3x5 | 27x5x6 | 27x5x6 | 28x5x6.5 | 30x6x6.5 |
| Raw material must be washed and sorted according plastic category to get mentioned production rate | ||||||

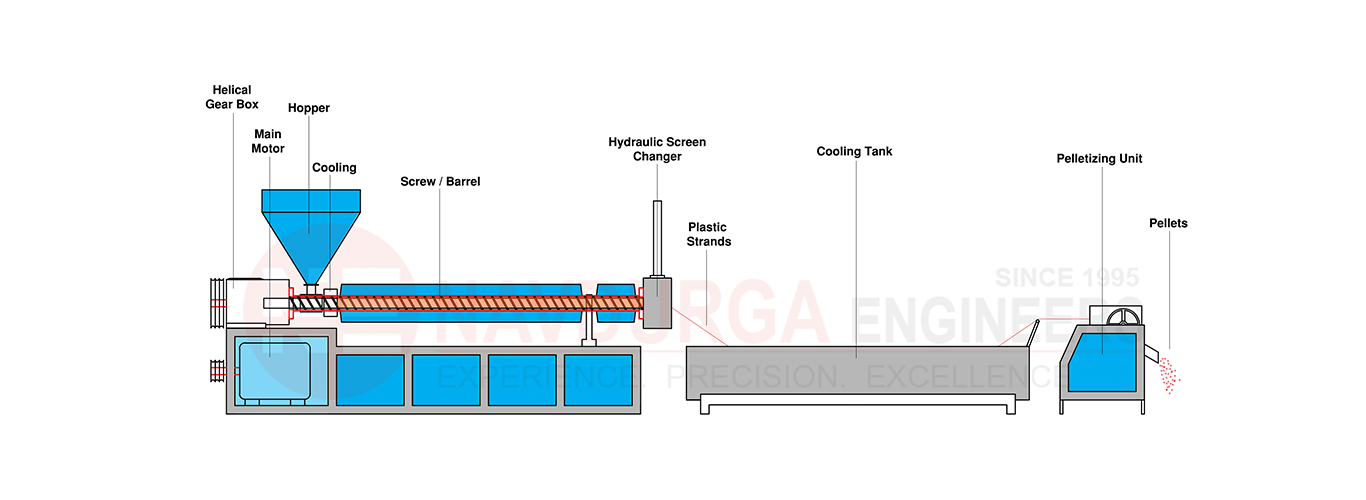

Layout
